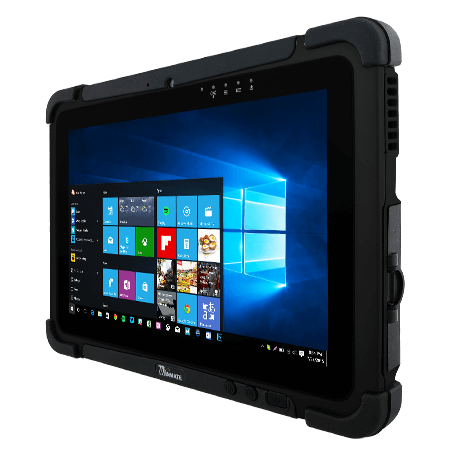

M101S 10.1英寸 Intel® Core™ i5-7200U 强固型平板电脑

重点特色

第七代Intel® Core™ i5-7200U Kaby lake 处理器
10.1英寸 1920 x 1200 IPS LED面板，结合光学贴合技术
阳光下可视抗眩光技术
热插拔电池设计，可选高容量电池组
IP65防水防尘，MIL-STD-810G防震、耐振动和耐摔

CERTIFICATIONS

产品规格书下载资源

M101S

10.1英寸 Intel® Core™ i5-7200U 强固型平板电脑

产品资讯

技术规格

配件

采用高性能的Intel®处理器

M101S使用Intel® Core® i5-7200U处理器2.5GHz（涡轮增压至3.1GHz），配备高效冷却系统，提供稳定的性能和低功耗。 M101S支持最新的Windows® 10 IoT企业操作系统，满足日益增长的工业应用需求，并为那些介于普通消费级和极其坚固的解决方案之间的用户提供了一个替代解决方案。

即时资料和无线连接

即时资料访问正确的资讯对移动工人来说是至关重要的。 M101S提供GPS、GLONASS、WLAN、BT 5.0和可选的4G LTE，随时随地实现强大的通讯。后面有一个内置的800万像素镜头，用户可以即时拍摄照片、影片和文件，或利用前置2.0 MP摄像头进行自拍或视讯等应用。

移动外形中的坚固设计

M101S强固型平板电脑设计得非常坚固，能够承受冲击、振动，并根据军事标准MIL-STD-810G的规定，在一些最恶劣的环境中操作，可跌至4英尺高的混凝土。 M101S具有防尘防水的全方位橡胶边缘和覆盖的I/O端口。可以在潮湿和多尘的环境中使用。

辉煌的10.1"显示器与终极触控能力

M101S的10.1"萤幕具有投射电容式（PCAP）多点触控功能，可实现最佳的用户体验，并可轻松切换视窗、影像截图、放大和旋转物体，轻松发挥触控介面的全部优势。支持雨天、手套、手写笔模式。

移动劳动力的资料收集工具

通过可选的资料收集工具，M101S为现场工作人员提供了终极生产力。选项包括内置1D/2D条码阅读器、高频RFID阅读器或附加的超高频RFID阅读器模组、智慧阅读器。

Display

Size

10.1 inches

Resolution

1920x1200

Type

Projected Capacitive Multi Touch

Panel Brightness

800 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Bonding

Optical Bonding for Sunlight Viewability

Viewability

Anti-Glare touch treatment

System Specification

Processor

Intel Core i5-7200U 2.5GHz (up to 3.1GHz) Intel Core i5-7300U 2.6GHz (up to 3.5GHz) (Optional)

Memory

4GB DDR4 SDRAM 8GB DDR4 SDRAM (Optional) 16GB DDR4 SDRAM (Optional)

Storage

128GB SSD Additional storage available with micro SDXC card slot 256GB SSD (Optional) 512GB SSD (Optional)

Security

Trusted Platform Module (TPM) 2.0 Kensington Lock

Operating System

Windows 10 IoT Enterprise (64 bit)

WLAN

Support

WWAN

4G LTE (Optional)

GNSS

GPS, GLONASS

RFID

HF RFID reader 13.56 MHz (Optional)

Sensors

Light sensor/ G-sensor / Gyro

Camera

Front Camera

2MP Front Camera

Rear Camera

8MP Rear Camera with auto-focus and LED light

Mechanical

Dimension

271.8 x 197.2 x 21 mm (10.7 x 7.76 x 0.83 inches)

Weight

1.25 kg (2.75 lbs) with standard battery, 1.45 kg (3.2 lbs) with optional high capacity battery

Cooling System

Fan design

IO Ports

USB Port

1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)

Video

1 x Micro HDMI (Optional)

Audio

1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker

SD Card Slot

1 x Micro SDXC slot

SIM Card Slot

1 x Micro SIM card slot

Indicator

4x LED Indicator for Power, Battery, HDD, RF status

Docking Connector

1 x 19-pin docking connector

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

IP rating

IP65

Certification

CE, FCC

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock Support

Control

Button

1 x Power, 1 x Home 2 x volume key 2 x Programmable function Keys

Power

Battery

Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)

Battery Operating Time

Standard. Battery: 8 hours High Capacity Battery: 16 hours

Power Rating

19V DC

Adapter

100-240V, 50-60Hz / 19V DC

Accessory

Adapter and Power Cord Capacitive Stylus Standard Battery

Optional Accessory

Desk Dock (Optional) Vehicle Dock (without VGA output) (Optional) Vehicle Cradle (Optional) Vehicle Charger (Optional) High Capacity Battery (Optional) Battery Charger (Optional) Hand Strap (Optional) Shoulder Strap (Optional) Carry Bag (Optional) VESA Mount Kit (Optional)
