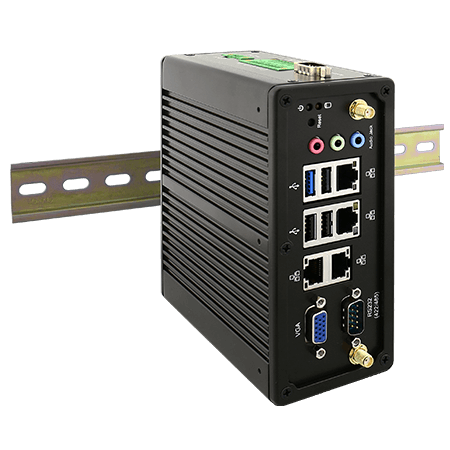

IBDRW100-EX-P Intel® Atom® E3950 轨道型工业计算机 (C1D2认证)

重点特色

Class 1, Division 2 设备通过了危险区域应用认证。
工业自动化应用的轨道型设计。
Intel® Atom® E3950 1.6 GHz, up to 2.0 GHz处理器。
1 x RS232/ 422/ 485 通讯，通过 BIOS 选择。
4 x Giga LAN, 3 x USB 3.0, 1 x USB 2.0, 1 x VGA, 1 x Line out, 1 x line in, 1 x Mic in, 1 x Power Jack。
无风扇，流线型外壳，可实现高效散热。
-40˚C~70˚C工作温度范围。
AWS IoT Greengrass认证。

CERTIFICATIONS

产品规格书下载资源

IBDRW100-EX-P

Intel® Atom® E3950 轨道型工业计算机 (C1D2认证)

产品资讯

技术规格

配件

高效率

Intel® Atom® E3950处理器1.6 GHz 至 2.0 GHz 结合Intel®的高清图形505 GPU和最大8 GB内存，实现稳定可靠的运行。

高效散热无风扇，可靠性高，工业级

IBDRW系列坚固耐用，具有宽广的温度和电压工作范围，使其足以应对工业环境。

为挑战环境做好准备

轨道型工业电脑的设计是为了便于安装、访问和维护。 IBDRW系列拥有广泛的I/O支持，全部位于工业电脑的正面或顶部。

System Specification

Processor

Intel Atom E3950 1.6GHz (up to 2GHz) Intel Atom E3940 1.6GHz (up to 1.8GHz) Intel Atom E3930 1.3GHz (up to 1.8GHz)

Memory

1 x SO-DIMM, DDR3L 1866 MHz, 4GB 8GB (Optional)

Storage

1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional)

Ethernet controller

4 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

Expansion Port

1 x M.2 2230 E-key (for half size Wifi module) 1 x M.2 2242 B-key Slot (for SSD)

Mechanical

Dimension

139 x 65.4 x 152 mm

Mounting

Din-Rail Mounting

Enclosure

Aluminum Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

-40°C to 70°C

Storage Temperature

-40°C to 80°C

Shock

MIL-STD-810G Method 516.6 Procedure I (Optional)

Vibration

MIL-STD-810G Method 514.6 Procedure I

Certification

CE, FCC, IC Ordinary Location Safety : UL/CSA 62368-1 Hazardous Location Safety: Class 1, Division 2, Group A, B, C, D Temperature Code T5

IO Ports

USB Port

3 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232) 1 x RS422/485 (Default RS422)

LAN

4 x Giga LAN RJ45 Connector

Video

1 x VGA

Audio

Mic in Line in Line out

Expansion Port

1 x M.2 2230 E-key (for half size Wifi module)

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

DIDO

Terminal block with digital 9 in / 9 out (Optional)

Power Input

1 x 9~36V DC, 3-Pin Terminal Block

Control

Button

1 x Power Button

Accessory

100~240V AC to DC Adapter Power Cord 2 x Terminal Block 10 pin fconnector for DIDO Open Wire Cable with terminal block connector Terminal Block 3 pin to 2.5Ø Female Adapter Cable Din Rail Mounting kits Cable Holder kits
