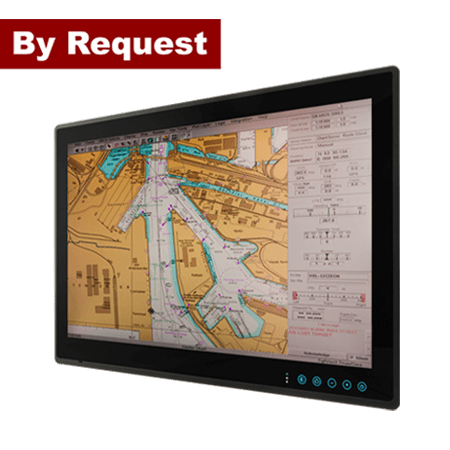

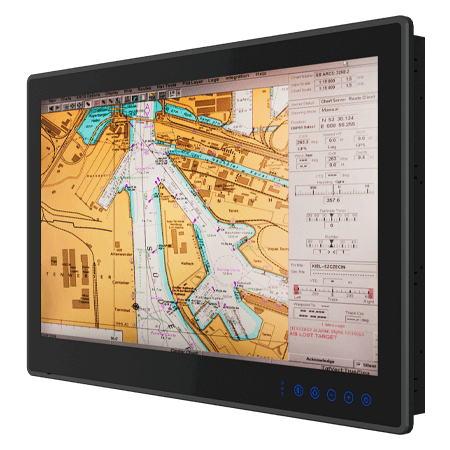

W27IAD3S-MRA1FP 27英寸 Intel® Core™ i5-1335U 扁平投射电容ECDIS船舶等级工业计算机

27.0 inches

Projected Capacitive Multi Touch Screen (AR Coating) AG film (Optional) AR Glass (Optional)

1920x1080

300.0 nits

3000:1

89,89,89,89

597.6x336.15 mm

Intel® Core™ i5-1335U 3.4GHz(up to 4.60 GHz)

1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional)

1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional)

2 x Intel® Ethernet Controller

Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)

75 dB~80 dB, 2300 Hz, 1m

5% to 95%

-15~55°C

15G,11ms duration

0.7g@DNV-CG-0339 (Class A)

IP66 (Front Side)

CE, FCC

665 x 432.4 x 85.5 mm

632 x 394 mm

12.8 kg

VESA mount/Panel mount

Anodized Aluminum Bezel

Fanless Design

2 x USB3.0 1 x USB2.0 (Optional)

1 x RS232(Default)/422/485 1 x RS232 (Optional)

2 x RJ45

1 x HDMI (Optional)

1 x 2.5" Removable 64GB SSD/HDD up to 512GB (Optional)

Power Brightness + Brightness - Menu Function Key(Default setting: ECDIS Mode)

Day Mode Dusk Mode Night Mode

8 Channel Isolated Digital Input/Output (Optional)

4 x NMEA 0183 Port (Optional)

User Manual 12V AC to DC Adapter (with 3 pin Terminal Block) Power Cord M4 x 30 Black Screws Bolts M4 x 15 Sliver Screws Bolts

Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)

24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable

75W (Typical)
