S101TG
重点特色
- 第11代Intel Tiger Lake 处理器
- 1920 x 1200 / 800 nits WUXGA带投射电容触摸屏
- 采用防眩光解决方案，阳光下可读
- IP65 防水防尘，采用 MIL-STD-810H 坚固外壳
- 2MP网络摄像头，8MP自动对焦后置摄像头
- 可拆卸电池，具有热插拔功能，可实现全天生产力
- 乙太网路直通Giga LAN (RJ45)
- 可选1D/2D条码阅读器
IP65" title="IP65
MIL-STD 810H" title="MIL-STD 810H
FCC" title="FCC
CE" title="CE
CERTIFICATIONS
S101TG
10.1英寸 Intel® Core™ i5-1135G7 强固型平板电脑
Product Details
采用高性能的Intel® CPU
S101TG采用第11代Intel® Tiger Lake处理器，搭配高效散热系统，提供稳定的性能和低能耗。 S101TG 支持最新的 Windows® 10 IoT Enterprise 操作系统，可满足日益增长的工业应用需求，并为介于一般消费级和极其坚固的解决方案之间的用户提供了另一种解决方案。
实时数据和无线连接
实时数据访问正确的信息对移动工人来说是至关重要的。 S101系列提供GPS、GLONASS、WLAN、BT 5.2和可选的4G LTE，随时随地实现稳健通信。内置800万像素自动对焦摄像头，后置LED闪光灯，用户可以即时拍摄照片、视频、文档或利用前置 2.0 MP 摄像头进行自拍或视频通信等应用。
移动设备中的坚固设计
S101系列强固型平板电脑设计坚固耐用，可承受冲击、振动，并根据军事标准MIL-STD-810H的规定，可从高达4英尺的高度跌落到混凝土上，可在一些最恶劣的环境中运行。
出色的10.1英寸显示器，具有终极触控功能
10.1英寸系列采用投射电容式（PCAP）多点触控，可提供最佳用户体验，可以轻松切换窗口、拍摄快照、放大和旋转对象，充分发挥触控介面的优势。支持雨天、手套、手写笔模式。
Specification
Size
10.1 inches
Resolution
1920x1200
Type
Projected Capacitive Multi Touch
Panel Brightness
800.0 nits
Contrast Ratio
800:1
View Angles
85,85,85,85
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
Touch Mode
Support Hand/Rain, Stylus, Glove Mode
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2 GHz)
Memory
8GB (Default)
16GB (Optional)
32GB (Optional)
Storage
128GB SSD
Additional storage available with micro SDXC card slot (Default)
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD (Optional)
2TB SSD (Optional)
Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 11 IoT Enterprise LTSC (64 bit) (Default)
Windows 10 IoT Enterprise LTSC (64 bit) (Optional)
WLAN
Support
BT
Support
WWAN
4G LTE (Optional)
5G (Optional)
GNSS
GPS, GLONASS
Sensors
Light sensor/ G-sensor / Gyro
Front Camera
2MP Front Camera
Rear Camera
8MP Rear Camera with auto-focus and LED light
Dimension
272 x 192 x 25 mm
Weight
1.1 kg
Cooling System
Fan Design
USB Port
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
LAN
1 x RJ45-10/100/1000 GigaLAN port
Video
1 x Micro HDMI (Optional)
Audio
1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Mic Built-in Microphone
Single Speaker
SD Card Slot
1 x Micro SDXC slot
SIM Card Slot
1 x Nano SIM card slot
Expansion Port
1 x Expansion Connector for USB3.0 / UART (Optional)
Indicator
2x LED Indicator for Power, Battery
Docking Connector
1 x 19-pin docking connector
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
Drop
MIL-STD-810H Method 516.8, 4 ft
IP rating
IP65
Certification
CE, FCC
SOTI MobiControl
SOTI MobiControl Compliance
Kensington Lock
Kensington Lock Support
Button
1 x Power
2 x Programmable function Keys
Battery
11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P)
11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional)
Hot-Swap (Optional)
Battery Operating Time
Standard. Battery: 6 hours
High Capacity Battery: 7.5 hours
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
Accessory
Adapter and Power Cord
Standard Battery
Optional Accessory
Vehicle Charger (Optional)
Vehicle Dock (Optional)
Desk Dock (Optional)
Battery Charger (Optional)
Hand Strap (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
Stylus (Optional)
Barcode Scanner
1D/2D barcode reader (Optional)
Accessories
STANDARD ACCESSORIES
Adapter and Power Cord
Model Name: A065R193P
Part Number: 9220065W19V1
- 100-240VAC to 19VDC@3.42A
- Country specific power cords available
Standard Battery
Model Name: BTS101
Part Number: 98K000A000H3
- 11.4V / 3500 mAh Li-Ion Battery, 3S1P
- Dimensions: 194.5 x 75.1 x 12 mm
- Weight: 210g
OPTIONAL ACCESSORIES

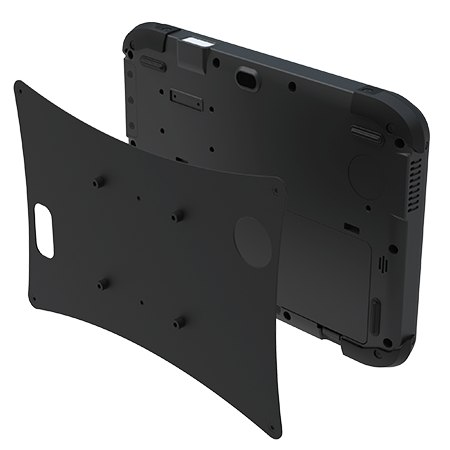

Hand Strap
Vehicle Cradle
Model Name: VC-S101
Part Number: 98DT00A0003Q
- VESA Mounting support
- 9-36V DC IN with 3-pin terminal block
- Easy insert and release with Key-Lock
Shoulder Strap
Model Name: SS-S101
Part Number: 98K000A000HQ
- Fixed with screws
- Adjustable cross-body strap (85-165cm) with pad
- Weight: 67g
Battery Charger
Model Name: BC-S101
Part Number: 98J000A00008
- Dual-bay charging dock
- Power level LED indicators
- Buzzer to indicate battery is inserted
Carry Bag
Model Name: CB-M101
Part Number: 98K010SP027R
- With Hand Carrier and Shoulder Strap
- Separated pocket for accessories
Vehicle Charger
Model Name: VCG-M101
Part Number: 9226065W19V0
- 11~24V DC IN
- 19V/ 3.42A DC OUT
Body Strap
Model Name: BS-S101
Part Number: 98K000A000P6
- Fixed with screws
- Adjustable body strap with pad
- Weight: 264g
High Capacity Battery
Model Name: BTS101L
Part Number: 98K000A000O9
- 11.4V / 4750 mAh Li-Ion Battery, 3S1P
- Dimensions: 194.5 x 75.1mx 14.8 mm
- Weight: 290g
Vehicle Docking
Model Name: VD-S101
Part Number: 98D010A00004
- VESA Mounting support
- USB 2.0 x 4 (Rear x2, Bottom x2)
- 9-36V DC IN with 3-pin terminal block
- Easy insert and release with Key-Lock
Desk Dock
Model Name: DD-S101
Part Number: 98D000A00030
- Easy to charge S101 Series Tablets
- User-friendly viewing angle with extended I/O interface
- Operating temperature : -20˚C ~ 60˚C
Product FAQs
S101TG 属于何种装置？
S101TG 是一款专为工业与户外应用设计的强固型平板电脑，结合耐用性、先进数据撷取功能及可靠连线能力，适用于现场作业与关键任务操作。
S101TG 是否支援整合式条码与 RFID 功能？
是的。 S101TG 配备整合式 2D 条码与 UHF RFID 组合功能，可实现高效的数据撷取、资产追踪、库存管理及现场识别任务。
S101TG 是否提供选配条码读取器？
是的。除整合式组合选项外，S101TG 亦支援选配 1D/2D 条码读取器，可依据应用需求弹性配置。
S101TG 是否适用于户外可视性？
是的。 S101TG 配备防眩光处理的阳光可读显示萤幕，即使在直射阳光下仍能确保清晰舒适的视觉体验。
S101TG 提供何种等级的坚固防护？
S101TG 采用符合 MIL-STD-810H 标准的坚固外壳，具备 IP65 防尘防水等级，适用于严苛的工业与户外环境。
S101TG 具备哪些相机功能？
S101TG配备：
- 200万画素前置网路摄影机，适用视讯通讯
- 800万画素后置自动对焦相机，适用拍摄照片、文件及现场记录
S101TG是否支援热插拔电池？
是。 S101TG配备具热插拔功能的可拆卸电池，使用者无需关闭系统即可更换电池，实现全天候生产力。
S101TG 如何实现可靠的网路连线？
S101TG 透过千兆以太网路埠（RJ45）提供有线连线能力，为工业设备、车载系统或固定安装环境提供稳定高速的网路连接。
S101TG最适合哪些应用场景？
S101TG专为物流、仓储、制造、公用事业、现场服务、资产管理及库存管控等领域设计，在这些对坚固结构与数据撷取需求严苛的场景中表现卓越。
为何选择 S101TG 作为强固型平板解决方案？
S101TG 整合以下优势：
- 内建 2D 条码与 UHF RFID 复合式读取器
- 可选配一维/二维条码读取器
- 阳光下可读取的防眩光显示屏幕
- IP65等级防尘防水保护
- 符合MIL-STD-810H军规的坚固外壳
- 热插拔可拆卸电池
- 千兆乙太网路 (RJ45)
- 前后置相机，适用于现场文件记录
上述特性共同造就 S101TG 成为适用于严苛环境的可靠多功能强固型平板电脑。
