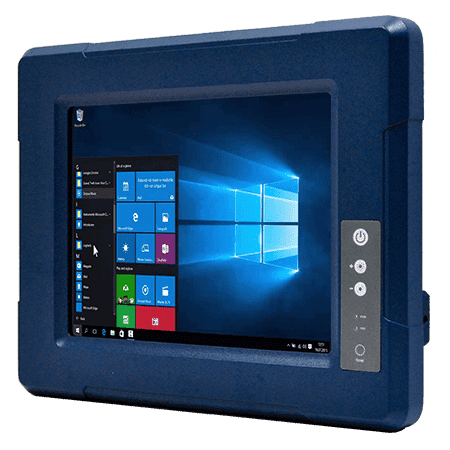

R10IAD3S-VMT2(HB) 10.4″ Intel® Core™ i5-1235U G-WIN车载工业计算机

Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)

1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional)

1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional)

2 x Intel® Ethernet Controller

TPM 2.0

Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)

Support (Optional)

Support (Optional)

10.4 inches

Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)

High brightness Panel for sunlight readable (Optional)

1024x768

350.0 nits

1000:1

88,88,88,88

210.4x157.8 mm

315 x 250 x 67 mm

2.9 kg

VESA mount Yoke mount (Optional)

Aluminum Housing

Fanless Design

10% to 90% RH, Non-Condensing

-10°C to 55°C

-30°C to 70°C

MIL-STD-810G Method 516.6 Procedure I (Optional)

MIL-STD-810G Method 514.6 Procedure I

Front IP65

CE, FCC

2 x USB3.2 Gen2x1 (Type-A)

1 x RS232/422/485 (Default RS232) 1 x RS232

2 x 2.5 Giga LAN RJ45 Connector

1 x HDMI 2.0 (Optional)

1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)

1 x LED Indicator for power 1 x LED Indicator for storage

1 x 9~36V DC, 3-Pin Terminal Block

1 x Power Button 1 x Reset Button 1 x Brightness Up button 1 x Brightness Down button

Open Wire Cable with terminal block connector VESA screws

Yoke mount stand (Optional) 100~240V AC to DC 120W Adapter with power cord (Optional)
